| PERFORMANCE |
| Processor |
Intel® Core™ i5-13420H, 8C (4P + 4E) / 12T, P-core 2.1 / 4.6GHz, E-core 1.5 / 3.4GHz, 12MB |
| Graphics |
Integrated Intel® UHD Graphics |
| Chipset |
Intel® SoC Platform |
| Memory |
1x 16GB SO-DIMM DDR5-5200 |
| Memory Slots |
Two DDR5 SO-DIMM slots, dual-channel capable |
| Max Memory |
Up to 64GB DDR5-5200 |
| Storage |
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal |
| Storage Support |
Up to two drives, 2x M.2 SSD • M.2 SSD up to 1TB each |
| Card Reader |
No card reader |
| Optical |
9.0mm DVD±RW |
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC623-CG codec |
| Speakers |
1Wx1 |
| Power Supply |
180W 85% |
| DESIGN |
| Keyboard |
USB Calliope Keyboard, Black, Hungarian |
| Mouse |
USB Calliope Mouse, Black |
| Expansion Slots |
- One PCIe® 4.0 x16, low-profile, length ? 155mm, height ? 70mm
- One PCIe® 3.0 x1, low-profile, length ? 155mm, height ? 70mm
- Three M.2 slots (one for WLAN, two for SSD)
|
| Case Color |
Chassis: Black, Bezel: Grey |
| Stand |
None |
| Pen |
Pen Not Supported |
| Form Factor |
SFF (8.2L) |
| Dimensions (WxDxH) |
92.5 x 291.7 x 339.5 mm (3.6 x 11.5 x 13.4 inches) |
| Weight |
Around 4.63 kg (10.2 lbs) |
| CONNECTIVITY |
| Ethernet |
Integrated 100/1000M |
| WLAN + Bluetooth |
None |
| WWAN |
Non-WWAN |

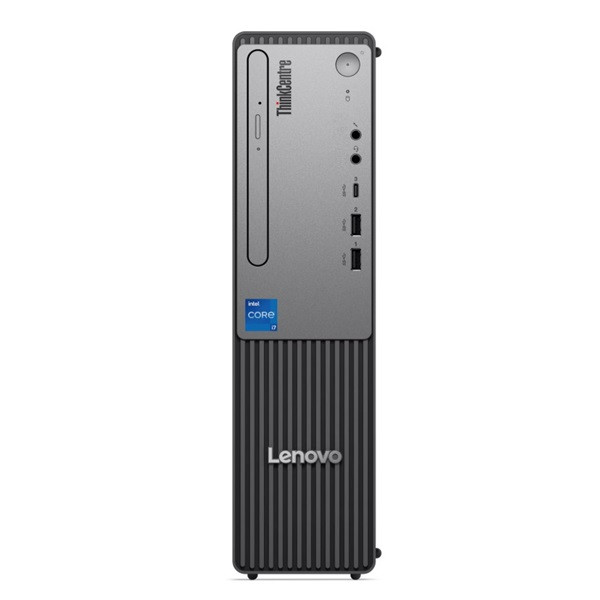

| Front Ports |
- 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x headphone / microphone combo jack (3.5mm)
- 1x microphone (3.5mm)
|

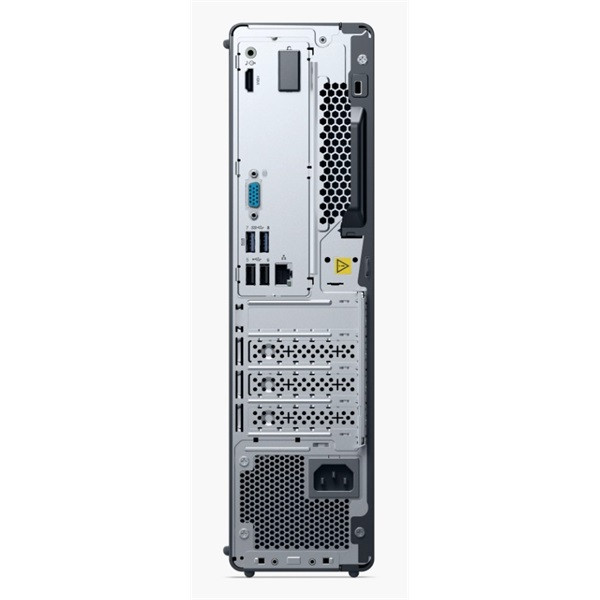

| Rear Ports |
- 2x USB-A (Hi-Speed USB / USB 2.0)
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On
- 1x HDMI® 2.1 TMDS
- 1x VGA
- 1x Ethernet (RJ-45)
- 1x line-out (3.5mm)
|
| Optional Rear Ports (configured) |
None |
| Monitor Cable |
None |
| SECURITY & PRIVACY |
| Security Chip |
Firmware TPM 2.0 integrated in SoC |
| Physical Locks |
- Kensington® Security Slot™
- Padlock Loop
|
| Smart Cable Clip |
None |
| Chassis Intrusion Switch |
None |
| Additional Security |
None |
| SERVICE |
| Base Warranty |
1-year, Courier or Carry-in |
| Included Upgrade |
3Y Onsite from 1Y Courier/Carry In SEE (CPN) |
| CERTIFICATIONS |
| Green Certifications |
TCO Certified |
| SOFTWARE |
| Operating System |
Windows® 11 Pro, Hungarian / English |
| Bundled Software |
None |
| ACCESSORIES |
| Bundled Accessories |
None |
