| PERFORMANCE |
| Processor |
Intel® Core™ i9-14900K, 24C (8P + 16E) / 32T, Max Turbo up to 6.0GHz, P-core 3.2 / 5.6GHz, E-core 2.4 / 4.4GHz, 36MB |
| AI PC Category |
AI-Ready Workstations |
| Processor Sockets |
1x FCLGA1700 |
| Integrated Graphics |
Integrated Intel® UHD Graphics 770 |
| Discrete Graphics |
None |
| Chipset |
Intel® W680 Chipset |
| Memory |
2x 32GB UDIMM DDR5-4400 Non-ECC |
| Memory Slots |
4 DDR5 DIMM slots, 2 channels capable |
| Max Memory |
Up to 128GB (4x 32GB DDR5 UDIMM) |
| PCIe NVMe Controller |
Integrated NVMe® Controller |
| PCIe NVMe Drive |
1x 2TB SSD M.2 2280 PCIe® 4.0x4 Performance NVMe® Opal |
| SATA Controller |
Onboard Intel® RSTe SATA RAID |
| SATA/SAS Drive |
None |
| Storage Support |
Up to five drives (4x HDD + 1x M.2 SSD) or six drives (3x HDD + 3x M.2 SSD) • 3.5" HDD up to 6TB each • 2.5" HDD up to 1TB each • M.2 SSD up to 4TB or 2TB each (see Storage Type) |
| Optical |
None |
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC897Q-CG codec |
| Power Supply |
750W Platinum Fixed |
| DESIGN |
| Keyboard |
USB Traditional Keyboard, Black, Hungarian |
| Mouse |
USB Calliope Mouse, Black |
| Expansion Slots |
Supports four PCIe® slots with two PCIe 4.0 x16 and two PCIe 3.0 x1. • Slot 1: PCIe 4.0 x16, full height, full length, 75W, double-width • Slot 2: PCIe 3.0 x1, full height, half length, 25W • Slot 3: PCIe 4.0 x16 (x4 lanes), full height, half length, 25W • Slot 4: PCIe 3.0 x1, full height, half length, 25W |
| Bays |
Up to four disk bays: • Bay 1 supports one 3.5" / 2.5" drive, standard • Bay 2 supports one 3.5" / 2.5" drive, optional • Bay 3 supports one 3.5" / 2.5" drive, optional • Bay 4 supports one 3.5" / 2.5" drive, optional • Front Access HDD Bay supports one 3.5" / 2.5" drive, optional, occupies Bay 3 location |
| Dimensions (WxDxH) |
180 x 370 x 415 mm (7.09 x 14.57 x 16.34 inches) |
| Weight |
13.61 kg (30.00 lbs, maximum configuration) |
| CONNECTIVITY |
| Onboard Ethernet |
Intel® I219-LM, 1x GbE RJ-45 |
| Optional Ethernet |
None |
| WLAN + Bluetooth |
None |
| Card Reader |
SD Card Reader |

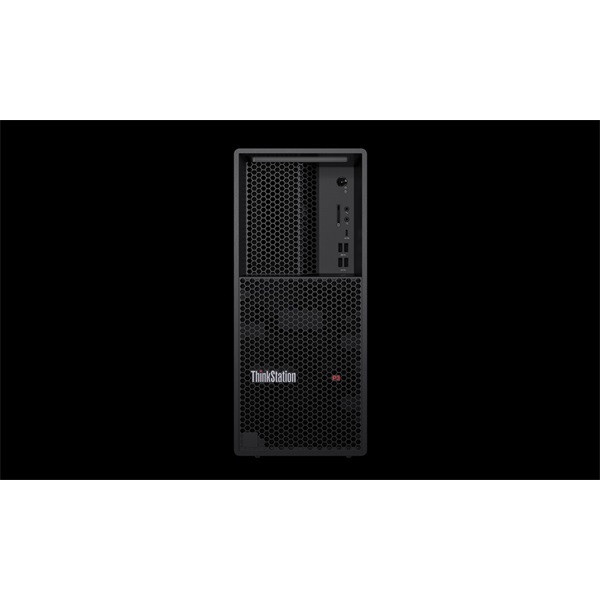

| Front Ports |
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), data transfer only
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 1x headphone / microphone combo jack (3.5mm)
- 1x microphone (3.5mm)
|
| Optional Front Ports (configured) |
1x SD card reader |

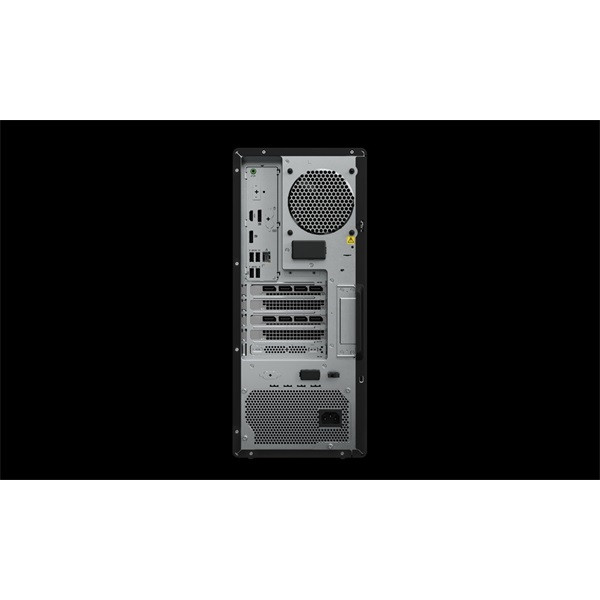

| Rear Ports |
- 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On
- 1x HDMI® 2.1 TMDS
- 2x DisplayPort™ 1.4
- 1x Ethernet (RJ-45)
- 1x line-out (3.5mm)
|
| Optional Rear Ports (configured) |
None |
| SECURITY & PRIVACY |
| Security Chip |
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Physical Locks |
- Kensington® Security Slot™, 3 x 7 mm
- Padlock Loop
|
| Cover Lock |
None |
| Cable Lock |
No Cable |
| Chassis Intrusion Switch |
None |
| MANAGEABILITY |
| System Management |
Intel® vPro® Enterprise with Intel AMT 16 |
| SERVICE |
| Base Warranty |
3-year, Onsite |
| Included Upgrade |
1Y Premier Support from 3Y Onsite Windchill bundles (CPN) |
| CERTIFICATIONS |
| Green Certifications |
- ENERGY STAR® 8.0, EPEAT™ Gold Registered
- ENERGY STAR® 8.0
- EPEAT™ Gold Registered
- ErP Lot 3
- RoHS compliant
- TCO Certified 9.0
|
| ISV Certifications |
Please visit ISV certifications for Lenovo® Workstations |
| SOFTWARE |
| Operating System |
Windows® 11 Pro, Hungarian / English |
| Bundled Software |
None |
| MODEL INFORMATION |
| Model |
30GS00C6HX |
| Country/Region |
Hungary |
| TopSeller |
Yes |
| EAN / UPC / JAN |
0197530542275 |
| Announce Date |
2024-03-19 |
| End of Support |
2031-05-25 |
