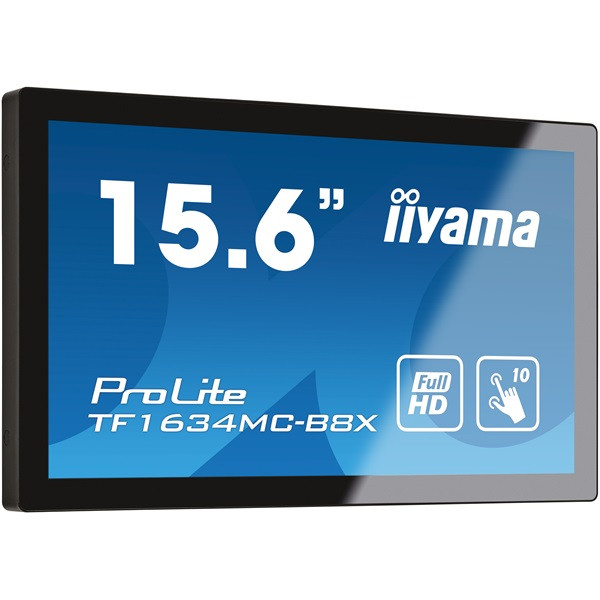

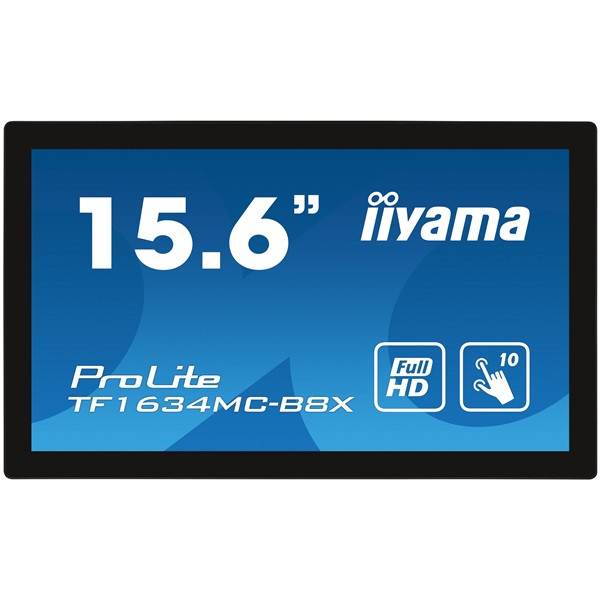

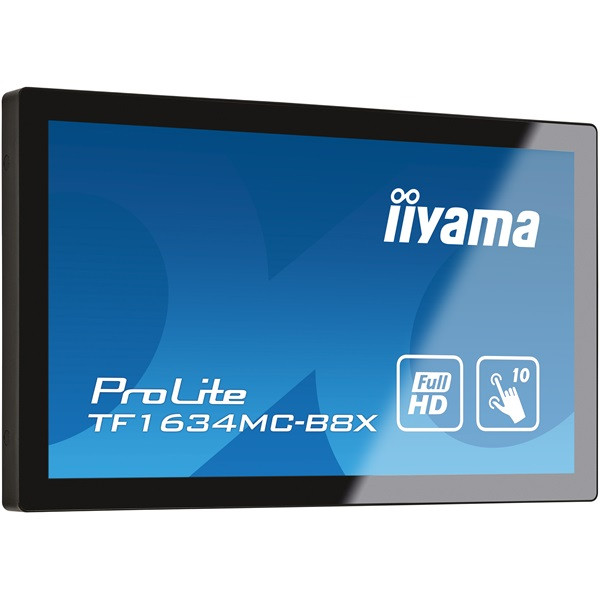

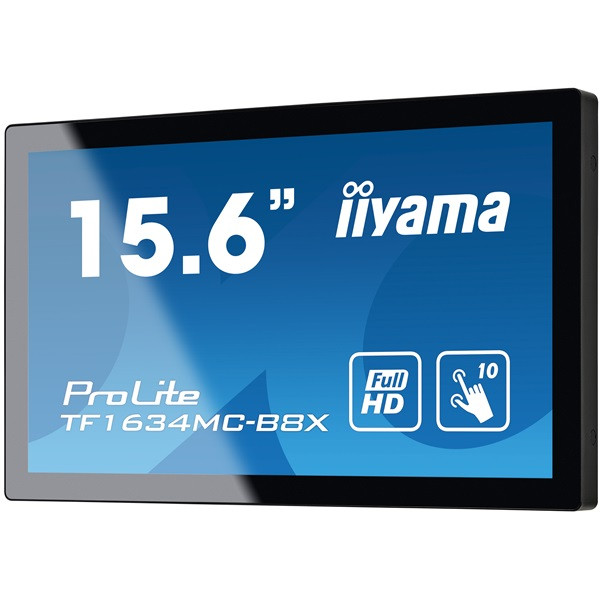

iiyama touch monitor, 15,6", 1920x1080, 16:9, 405cd, 28ms, 700:1,VGA/HDMI/DP, open frame, TF1634MC
iiyama touch monitor, 15,6", 1920x1080, 16:9, 405cd, 28ms, 700:1,VGA/HDMI/DP, open frame, TF1634MC
havi nettó 7 595 Ft *

iiyama touch monitor, 15,6", 1920x1080, 16:9, 405cd, 28ms, 700:1,VGA/HDMI/DP, open frame, TF1634MC

iiyama touch monitor, 15,6", 1920x1080, 16:9, 405cd, 28ms, 700:1,VGA/HDMI/DP, open frame, TF1634MC
iiyama touch monitor, 15,6", 1920x1080, 16:9, 405cd, 28ms, 700:1,VGA/HDMI/DP, open frame, TF1634MC
iiyama touch monitor, 15,6", 1920x1080, 16:9, 405cd, 28ms, 700:1,VGA/HDMI/DP, open frame, TF1634MC
iiyama touch monitor, 15,6", 1920x1080, 16:9, 405cd, 28ms, 700:1,VGA/HDMI/DP, open frame, TF1634MC
iiyama touch monitor, 15,6", 1920x1080, 16:9, 405cd, 28ms, 700:1,VGA/HDMI/DP, open frame, TF1634MC
iiyama touch monitor, 15,6", 1920x1080, 16:9, 405cd, 28ms, 700:1,VGA/HDMI/DP, open frame, TF1634MC
iiyama touch monitor, 15,6", 1920x1080, 16:9, 405cd, 28ms, 700:1,VGA/HDMI/DP, open frame, TF1634MC
iiyama touch monitor, 15,6", 1920x1080, 16:9, 405cd, 28ms, 700:1,VGA/HDMI/DP, open frame, TF1634MC
iiyama touch monitor, 15,6", 1920x1080, 16:9, 405cd, 28ms, 700:1,VGA/HDMI/DP, open frame, TF1634MC
iiyama touch monitor, 15,6", 1920x1080, 16:9, 405cd, 28ms, 700:1,VGA/HDMI/DP, open frame, TF1634MC
iiyama touch monitor, 15,6", 1920x1080, 16:9, 405cd, 28ms, 700:1,VGA/HDMI/DP, open frame, TF1634MC
iiyama touch monitor, 15,6", 1920x1080, 16:9, 405cd, 28ms, 700:1,VGA/HDMI/DP, open frame, TF1634MC
iiyama touch monitor, 15,6", 1920x1080, 16:9, 405cd, 28ms, 700:1,VGA/HDMI/DP, open frame, TF1634MC
iiyama touch monitor, 15,6", 1920x1080, 16:9, 405cd, 28ms, 700:1,VGA/HDMI/DP, open frame, TF1634MC
iiyama touch monitor, 15,6", 1920x1080, 16:9, 405cd, 28ms, 700:1,VGA/HDMI/DP, open frame, TF1634MC
iiyama touch monitor, 15,6", 1920x1080, 16:9, 405cd, 28ms, 700:1,VGA/HDMI/DP, open frame, TF1634MC
iiyama touch monitor, 15,6", 1920x1080, 16:9, 405cd, 28ms, 700:1,VGA/HDMI/DP, open frame, TF1634MC
iiyama touch monitor, 15,6", 1920x1080, 16:9, 405cd, 28ms, 700:1,VGA/HDMI/DP, open frame, TF1634MC
iiyama touch monitor, 15,6", 1920x1080, 16:9, 405cd, 28ms, 700:1,VGA/HDMI/DP, open frame, TF1634MC
Bővebben
Rendelhető
havi nettó 7 595 Ft *
Részletek

DISPLAY CHARACTERISTICS

Design Edge to edge glass, Open Frame
Diagonal 15.6", 39.5cm
Panel IPS Panel Technology LED
Native resolution 1920 x 1080 @60Hz (2.1 megapixel)
Aspect ratio 16:9
Panel brightness 450 cd/m²
Brightness 405 cd/m² with touch
Light transmittance 90%
Static contrast 700:1 with touch
Response time (GTG) 25ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 16.2mln (6bit + Hi-FRC)
Horizontal Sync 30 - 84kHz
Viewable area W x H 344.2 x 193.5mm, 13.6 x 7.6"
Pixel pitch 0.179mm
Bezel colour and finish black, matte

TOUCH

Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass 6mm
Palm rejection yes

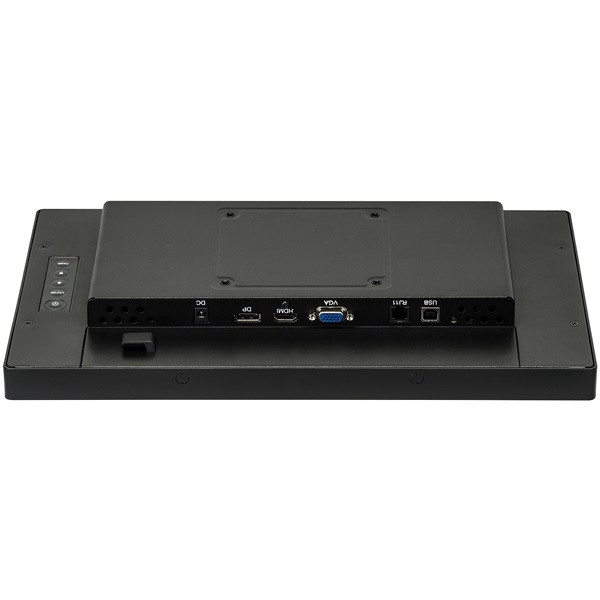

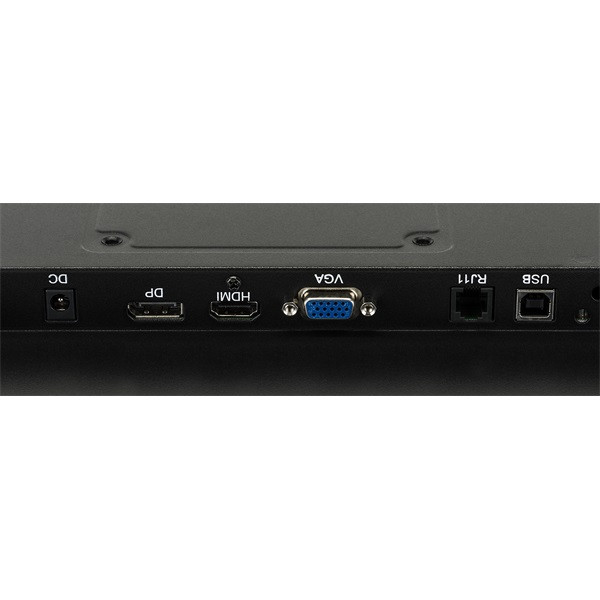

INTERFACES / CONNECTORS / CONTROLS

Analog signal input VGA x1
Digital signal input HDMI x1
DisplayPort x1
HDCP yes

FEATURES

Extra anti-fingerprint coating, touch through-glass
Glass thickness 2.4mm
Glass hardness 7H
Water and dust protection IP65 (front)
OSD key lock yes

GENERAL

OSD languages EN, DE, FR, ES, IT, CN, JP
Control buttons Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controls picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory)
Plug&Play DDC2B

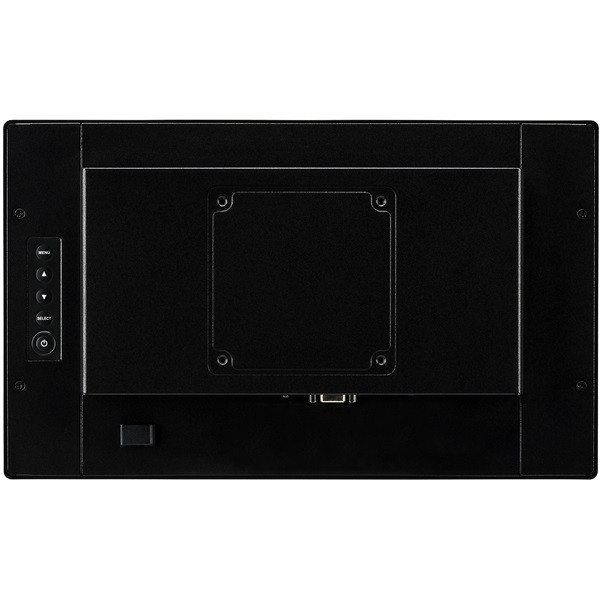

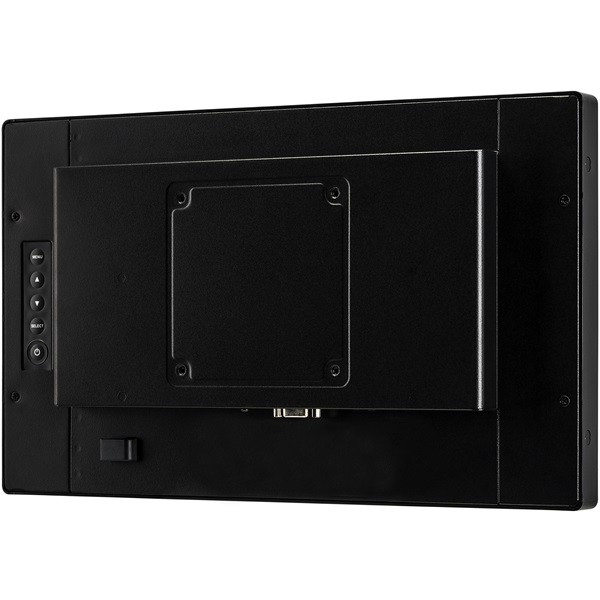

MECHANICAL

Orientation landscape
VESA mounting 100 x 100mm

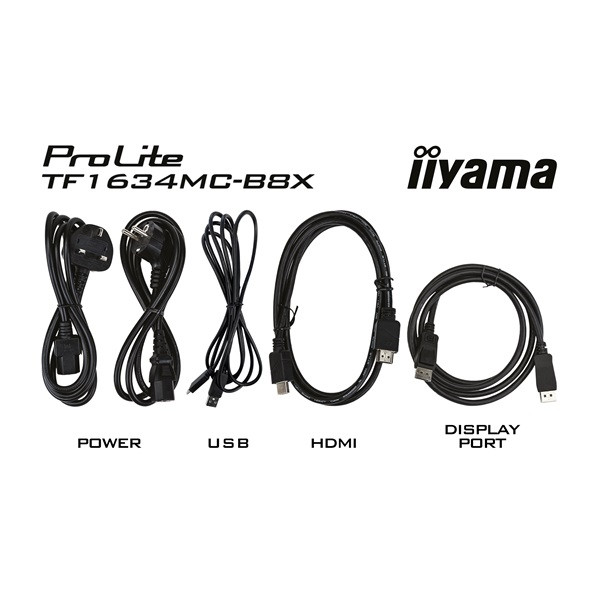

ACCESSORIES INCLUDED

Cables power, USB, HDMI, DP
Guides quick start guide, safety guide
Other AC adapter

POWER MANAGEMENT

Power supply unit external
Power supply DC 12 V
Power usage 18W typical, 1.5W stand by, 0.3W off mode

SUSTAINABILITY

Regulations CE, EAC, RoHS support, ErP, WEEE, cULus, REACH
Energy efficiency class (Regulation (EU) 2017/1369) F
REACH SVHC above 0.1%: Lead

DIMENSIONS / WEIGHT

Product dimensions W x H x D 381 x 230.5 x 46mm
Box dimensions W x H x D 455 x 365 x 290mm
Pallet volume 78pcs
Pallet dimensions W x H x D 115 x 97 x 204mm
Weight (without box) 2.0kg
Weight (with box) 4kg
EAN code 4948570118342

COMPATIBLE ACCESSORIES

Mounts/stands/brackets OMK1-1

RELATED INFORMATION

Related products OMK1-1

Ismerje meg szolgáltatásunkat

Adatok
Gyártó
IIYAMA
Képátló
15,6
Garancia
36 hónap
USB
Van
Felbontás
1920 x 1080 (FHD1080) 16:9
Fali rögzítés
100x100mm VESA falitartó-támogatás
HDMI
Van
Hangszóró
Van
Típus
Touch monitor
Képarány
16:9
Display Port
Van
Válaszidő
25
Panel típus
IPS
D-Sub
Van
Beépített tápegység
Nincs
Cikkszám
324545
