Részletek

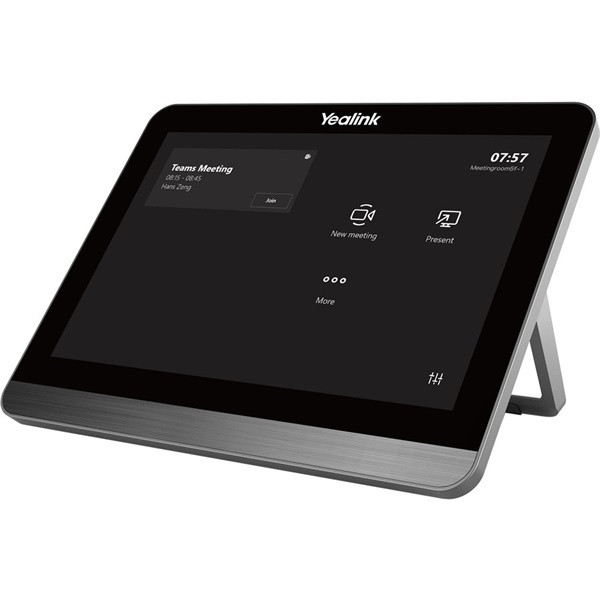

Connection • Connect to VCS endpoint via cable • Pair with the VCS endpoint in the same LAN (supported by later versions) • Connect to VCS endpoint via Wi-Fi System Compatibility • MeetingEye 400/MeetingEye 600 - 44 or later versions - Up to 4 CTP18 units can be used in one system • VC880/VC800/VC500 - Supported by later versions - Up to 4 CTP18 units can be used in one system • VC200/VC210 - Supported by later versions - Up to 1 CTP18 unit can be used in one system Wireless Network • Wi-Fi - 2.4G/5G Wi-Fi - IEEE 802.11n/ac - Support connecting to the Wi-Fi generated by Yealink VCS endpoints only Display • Screen - 8-inch IPS FHD capacitive touch screen • Resolution - 1280*800 (16:10) • Touch - 10 points multi-touch Interface • USB - 1 x USB-C for device debugging • RJ45 - 1 x RJ45 Ethernet for power and data connection • Reset slot 1 x Reset slot Accessories • Wall Mount Bracket - 1 x wall mount bracket • Security lock slot - 1 x security lock slot for anti-theft Other Physical Features • Power supply - Power over Ethernet (IEEE 802.3af) • Power input - PoE 48V 0.27A • Power consumption - 7W at most • Stand - Adjustable angle (28°~50°) • Dimension (W*D*H) - 202mm x 151mm x 100mm
