Connector(s)
Connector Type(s)
7 - USB Type-A (9 pin, 5 Gbps)
2 - USB 3.2 Type-A (9 pin, Fast-Charge)
Environmental
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
Humidity
10% ~ 90% RH (Non-condensing)
Hardware
USB-C Device Port(s)
No
USB-C Host Connection
No
Fast-Charge Port(s)
Yes
Ports
7
Interface
USB 3.2 Gen 1 (5Gbps)
Bus Type
USB 3.2 Gen 1 (5Gbps)
Industry Standards
USB Battery Charging Specification Rev. 1.2
USB 3.0 - Backward compatible with USB 2.0/1.1
Chipset ID
VIA/VLI - VL812
Indicators
LED Indicators
7 - Port status (Blue)
2 - Charge port status (Blue)
Packaging Information
Package Height
7.0 cm [2.8 in]
Package Length
29.4 cm [11.6 in]
Shipping (Package) Weight
0.6 kg [1.4 lb]
Package Width
19.2 cm [7.6 in]
Package Quantity
1
Performance
Maximum Data Transfer Rate
5 Gbps (USB 3.2 Gen 1)
Type and Rate
USB 3.2 Gen 1 - 5 Gbit/s
Physical Characteristics
Form Factor
Desktop
Weight of Product
134 g [4.7 oz]
Color
Black
Material
Plastic
Product Length
20 cm [7.9 in]
Product Width
6 cm [2.4 in]
Product Height
2.5 cm [1.0 in]
Power
Power Source
AC Adapter Included
Input Voltage
100 - 240 AC
Input Current
1.0 A
Output Voltage
12V DC
Output Current
4 A
Center Tip Polarity
Positive
Plug Type
M
Power Consumption (In Watts)
48
Software
OS Compatibility
OS Independent; No additional drivers or software required
Special Notes / Requirements
System and Cable Requirements
Host computer with an available USB 3.0 port
The included power adapter must be connected to the hub for operation
Note
If connected to a USB 2.0 host port, performance may be limited

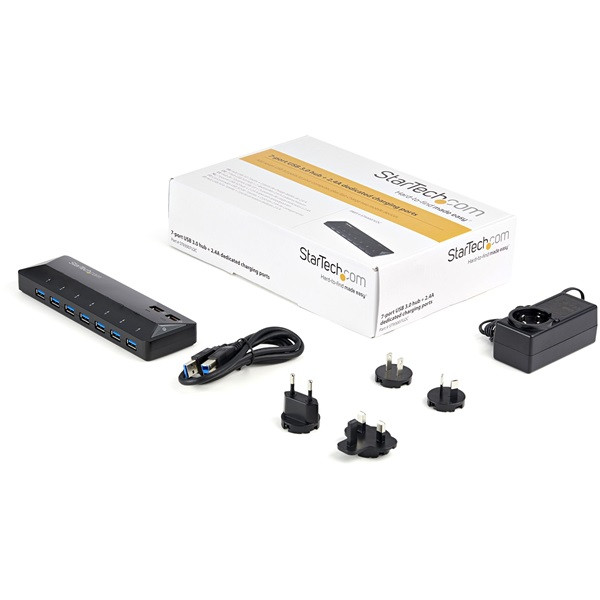

What's in the Box
Included in Package

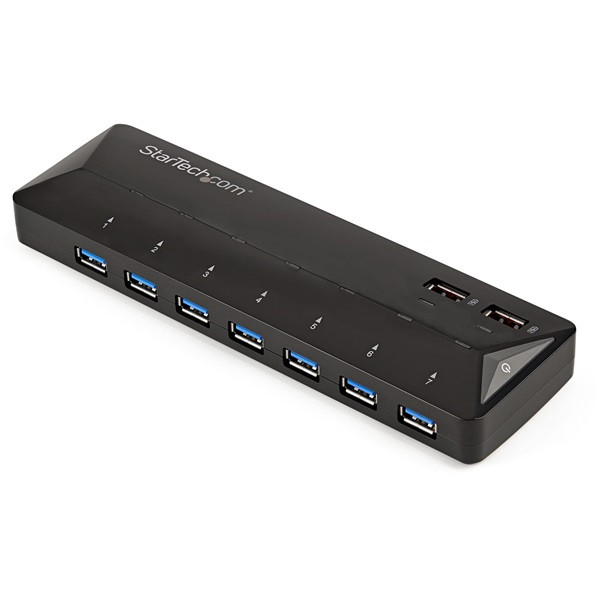

1 - 7-port USB 3.0 hub + 2.4A dedicated charging ports
1 - 3 ft. [1 m] USB 3.0 host cable
1 - universal power adapter (NA/EU/UK/AU)
