| PERFORMANCE |
| Processor |
Intel® Core i5-13420H, 8C (4P + 4E) / 12T, P-core up to 4.6GHz, E-core up to 3.4GHz, 12MB Intel Smart Cache |
| Graphics |
Integrated Intel® UHD Graphics |
| Chipset |
Intel® SoC Platform |
| Memory |
1x 16GB SODIMM DDR5-5600 |
| Memory Slots |
Two DDR5 SODIMM slots, dual-channel capable |
| Max Memory |
Up to 64GB DDR5-5600 |
| Storage |
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0 |
| Max Storage Support |
Up to two drives, 2x M.2 SSD • M.2 SSD up to 1TB each |
| RAID Preset |
None |
| Card Reader |
No card reader |
| Optical |
None |
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC256 codec |
| Speakers |
2Wx1 |
| Camera |
No camera |
| Microphone |
No microphone |
| Power Supply |
90W 89% Adapter |
| DESIGN |
| Keyboard |
USB, Calliope, Black, Hungarian |
| Mouse |
USB Calliope Mouse, Black |
| Optional Bay |
None |
| Expansion Slots |
Three M.2 slots (one for WLAN, two for SSD) |
| Case Color |
Black |
| Stand |
None |
| Adapter Cage |
None |
| Toolless Chassis Screw |
Toolless Chassis Screw |
| Mounting |
VESA Mount |
| IO Box |
No IO box |
| Pen |
Pen Not Supported |
| Form Factor |
Tiny (1L) |
| Dimensions (WxDxH) |
- Tiny only (without rubber feet) | 179 x 182.9 x 34.5 mm (7.05 x 7.2 x 1.36 inches)
- Tiny only (with rubber feet) | 179 x 182.9 x 36.5 mm (7.05 x 7.2 x 1.44 inches)
|
| Weight |
Around 1.13 kg (2.49 lbs) |
| CONNECTIVITY |
| WLAN + Bluetooth |
Intel® Wi-Fi® 6 AX203, 802.11ax 2x2 + BT5.2 |
| WWAN |
Non-WWAN |
| Ethernet |
Integrated 100/1000M |

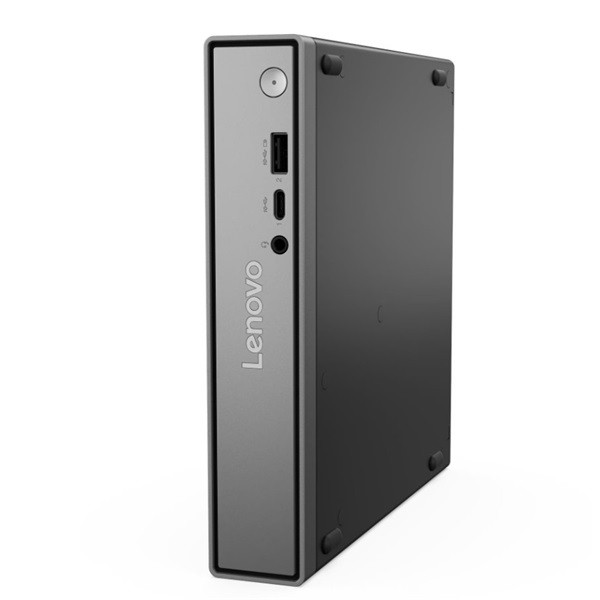

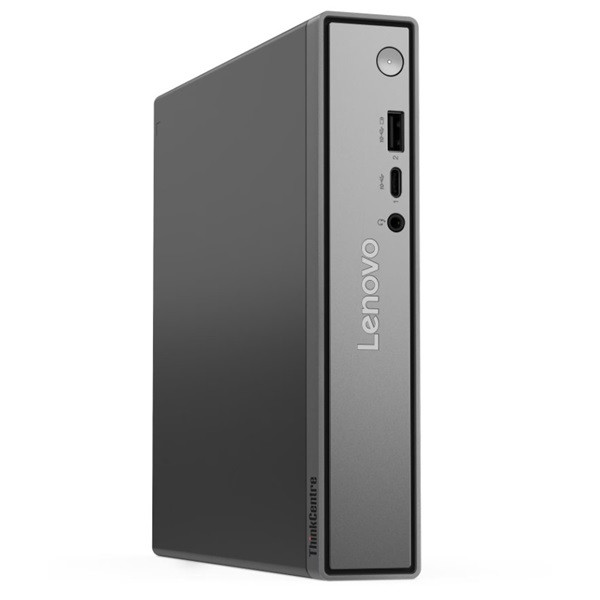

| Front Ports |
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with data transfer and 5V@3A charging
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and 5V@2.1A charging
- 1x headphone / microphone combo jack (3.5mm)
|

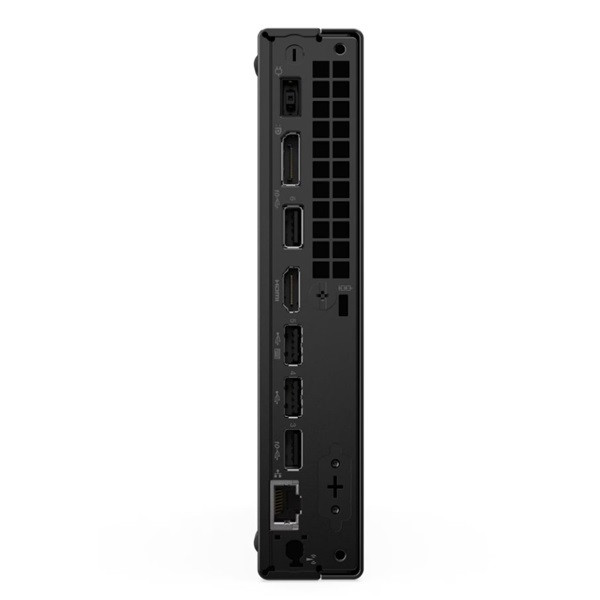

| Rear Ports |
- 2x USB-A (Hi-Speed USB / USB 2.0), one supports Smart Power On
- 2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 1x HDMI® 2.1 TMDS
- 1x DisplayPort™ 1.4b
- 1x Ethernet (GbE RJ-45)
- 1x Power connector
|
| Optional Rear Ports (configured) |
None |
| Monitor Cable |
None |
| SECURITY & PRIVACY |
| Security Chip |
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Fingerprint Reader |
No fingerprint reader |
| Physical Locks |
Kensington® Security Slot™, 3 x 7 mm |
| Chassis Intrusion Switch |
Chassis Intrusion Switch |
| MANAGEABILITY |
| System Management |
Non-vPro® |
| SERVICE |
| Base Warranty |
1-year, Courier or Carry-in |
| Included Upgrade |
3Y Onsite upgrade from 1Y Courier/Carry-in (CPN) |
| CERTIFICATIONS |
| Green Certifications |
- RoHS compliant
- TCO Certified, generation 10
|
| SOFTWARE |
| Operating System |
None |
| Bundled Software |
None |
| ACCESSORIES |
| Bundled Accessories |
None |
| MODEL INFORMATION |
| Model |
13B9006HHX |
| Machine Type |
13B9 |
| Region |
EET |
| Country/Region |
Hungary |
| TopSeller |
Yes |
| EAN / UPC / JAN |
0199272888314 |
| Announce Date |
2025-09-05 |
| End of Support |
2031-11-29 |
