| PERFORMANCE |
| Processor |
AMD Ryzen™ 5 8500GE (6C / 12T, 3.4 / 5.0GHz, 6MB L2 / 16MB L3) |
| Graphics |
Integrated AMD Radeon™ 740M Graphics |
| Chipset |
AMD PRO 600 Chipset |
| Memory |
1x 16GB SO-DIMM DDR5-5200 |
| Memory Slots |
Two DDR5 SO-DIMM slots, dual-channel capable |
| Max Memory |
Up to 32GB (2x 16GB DDR5 SO-DIMM); 64GB (2x 32GB) is special bids only |
| Storage |
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0 |
| Max Storage Support |
Up to two drives, 2x M.2 2280 SSD, up to 1TB each |
| RAID Preset |
None |
| Card Reader |
No card reader |
| Optical |
None |
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC233 codec |
| Speakers |
Internal Speaker |
| Power Supply |
65W 89% Adapter |
| DESIGN |
| Keyboard |
USB Traditional Keyboard, Black, Hungarian |
| Mouse |
USB Calliope Mouse, Black |
| Optional Bay |
None |
| Expansion Slots |
Three M.2 slots (one for WLAN, two for SSD) |
| Case Color |
Black |
| Stand |
None |
| Adapter Cage |
Adapter Cage |
| Toolless Chassis Screw |
Toolless Chassis Screw |
| Dust Filter |
None |
| Mounting |
1x VESA Mount |
| IO Box |
None |
| Pen |
Pen Not Supported |
| Form Factor |
Tiny (1L) |
| Dimensions (WxDxH) |
179 x 182.9 x 36.5 mm with rubber feet (7.05 x 7.2 x 1.44 inches) |
| Weight |
Around 1.25 kg (2.76 lbs) |
| CONNECTIVITY |
| WLAN + Bluetooth |
AMD Wi-Fi® 6E RZ616, 802.11ax 2x2 + BT5.3 |
| WWAN |
Non-WWAN |
| Ethernet |
Integrated 100/1000M |

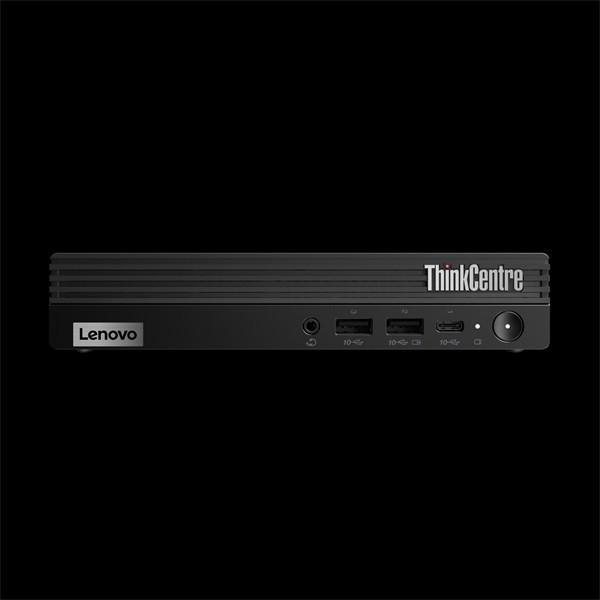

| Front Ports |
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with 5V@0.9A charging
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and 5V@2.1A charging
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 1x headphone / microphone combo jack (3.5mm)
|
| Optional Front Ports (configured) |
None |

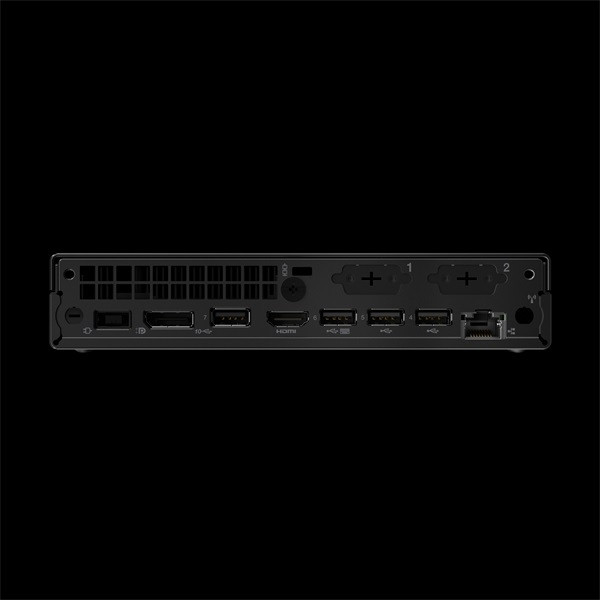

| Rear Ports |
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 3x USB-A (Hi-Speed USB / USB 2.0)
- 1x HDMI® 2.1 TMDS
- 1x DisplayPort™ 1.4 (HBR2, DSC)
- 1x Ethernet (RJ-45)
|
| Optional Rear Ports (configured) |
1x Serial |
| SECURITY & PRIVACY |
| Security Chip |
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Fingerprint Reader |
No fingerprint reader |
| Physical Locks |
Kensington® Security Slot™, 3 x 7 mm |
| Chassis Intrusion Switch |
Chassis Intrusion Switch |
| MANAGEABILITY |
| System Management |
Non-DASH |
| SERVICE |
| Base Warranty |
3-year, Onsite |
| Included Upgrade |
None |
| CERTIFICATIONS |
| Green Certifications |
- ErP Lot 3
- RoHS compliant
- TCO Certified 9.0
|
| Other Certifications |
- |
| Mil-Spec Test |
MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog) |
| SOFTWARE |
| Operating System |
None |
| Bundled Software |
None |
| ACCESSORIES |
| Bundled Accessories |
None |
| MODEL INFORMATION |
| Model |
12RQ000XHX |
| Machine Type |
12RQ |
| Region |
EET |
| Country/Region |
Hungary |
| TopSeller |
Yes |
| EAN / UPC / JAN |
0198153738649 |
| Announce Date |
2024-06-11 |
| End of Support |
2031-01-11 |
