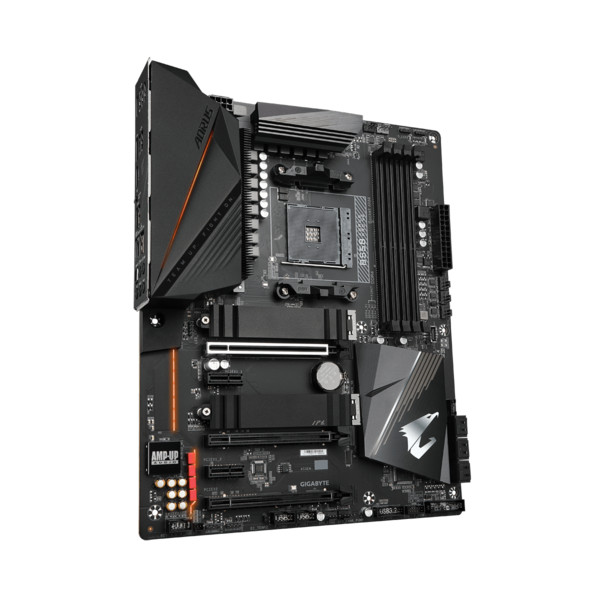

GIGABYTE Alaplap AM4 B550 AORUS PRO V2 AMD B550, ATX
GIGABYTE Alaplap AM4 B550 AORUS PRO V2 AMD B550, ATX
havi nettó 67 150 Ft-tól *

GIGABYTE Alaplap AM4 B550 AORUS PRO V2 AMD B550, ATX

GIGABYTE Alaplap AM4 B550 AORUS PRO V2 AMD B550, ATX
GIGABYTE Alaplap AM4 B550 AORUS PRO V2 AMD B550, ATX
GIGABYTE Alaplap AM4 B550 AORUS PRO V2 AMD B550, ATX
GIGABYTE Alaplap AM4 B550 AORUS PRO V2 AMD B550, ATX
GIGABYTE Alaplap AM4 B550 AORUS PRO V2 AMD B550, ATX
Bővebben
Rendelhető
havi nettó 67 150 Ft-tól *
Részletek
  • CPU
    1. AMD Socket AM4, support for : AMD Ryzen™ 5000 Series / 3rd Generation AMD Ryzen™ processors / 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. AMD B550
  • Memory
    1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    2. AMD Ryzen™ 5000 series Processors:
      Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    3. 3rd Gen AMD Ryzen™ Processors:
      Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    4. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
      Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    5. Dual channel memory architecture
    6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    8. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    Maximum shared memory of 16 GB
  • Audio
    1. Realtek® ALC1220-VB codec
      * The back panel line out jack supports DSD audio.
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
  • Expansion Slots
    1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    1. 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
    2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
    1. Supporting PCIe 3.0 x4 mode
      * The M2B_SB connector shares bandwidth with the PCIEX4 slot. The PCIEX4 slot will become unavailable when an SSD is installed in the M2B_SB connectors.
    1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
    1. Supporting PCIe 3.0 x2 mode
      * The PCIEX2 slot shares bandwidth with the SATA3 4, 5 connectors. The PCIEX2 slot will become unavailable when a device is installed in the SATA3 4 or SATA3 5 connector.
    2 x PCI Express x1 slots
  • Storage Interface
    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
    1. 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
    2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
    1. support PCIe 3.0 x4/x2 SSDs
    6 x SATA 6Gb/s connectors, integrated in the Chipset:
    1. Support for RAID 0, RAID 1, and RAID 10
  • USB
    CPU:
    1. 2 x USB 3.2 Gen 1 ports on the back panel
    2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    Chipset:
    1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
    2. 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
    3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    4. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    5. 2 x USB 2.0/1.1 ports on the back panel
    Chipset+2 USB 2.0 Hubs:
    1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 2 x M.2 Socket 3 connectors
    4. 6 x SATA 6Gb/s connectors
    5. 1 x CPU fan header
    6. 1 x water cooling CPU fan header
    7. 4 x system fan headers
    8. 2 x system fan/water cooling pump headers
    9. 1 x CPU cooler LED strip/RGB LED strip header
    10. 2 x addressable LED strip headers
    11. 2 x RGB LED strip headers
    12. 1 x front panel header
    13. 1 x front panel audio header
    14. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
    15. 1 x USB 3.2 Gen 1 header
    16. 2 x USB 2.0/1.1 headers
    17. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    18. 2 x temperature sensor headers
    19. 1 x Thunderbolt™ add-in card connector
    20. 1 x Clear CMOS jumper
    *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

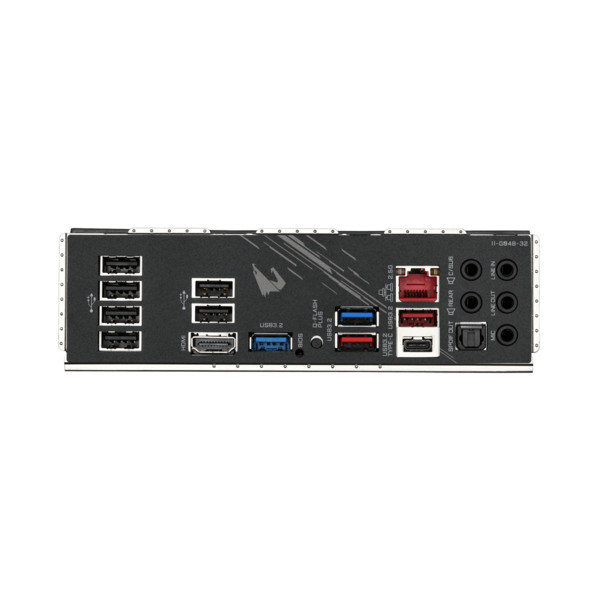

  • Back Panel Connectors
    1. 1 x HDMI port
    2. 2 x USB 3.2 Gen 1 ports
    3. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
    4. 2 x USB 3.2 Gen 2 Type-A ports (red)
    5. 6 x USB 2.0/1.1 ports
    6. 1 x Q-Flash Plus button
    7. 1 x RJ-45 port
    8. 1 x optical S/PDIF Out connector
    9. 5 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Overheating warning
    6. Fan fail warning
    7. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. XSplit Gamecaster + Broadcaster (12 months license)
    3. Realtek® 8125 Gaming LAN Bandwidth Control Utility
  • Operating System
    1. Support for Windows 10 64-bit
  • Form Factor
    1. ATX Form Factor; 30.5cm x 24.4cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Adatok
Gyártó
GIGABYTE
Gyártói cikkszám
B550 AORUS PRO V2
Garancia
36 hónap
EAN
4719331810566
USB 2.0
10
HDMI
Van
Wireless
Nincs
Display Port
Nincs
D-Sub
Nincs
Thunderbolt
Nincs
DVI
Nincs
Memória típus
DDR4
USB 3.1
8
USB 3.0
0
Kivitel
Dobozos
Memória órajel
3200
Soros port
Nincs
EAN
4719331810566
Chipset gyártó
AMD
Raid
Igen
Foglalat típusa
AM4
SATA III
6
Párhuzamos port
Nincs
Quad Channel
Nincs
M.2 foglalat
Van
Audio
7.1 HD
Grafikus foglalat
3 x PCI-Ex16
Form Factor
ATX
LAN1
100/1000/2500 Mb/s
Max memória
128
Memória foglalatok száma
4
PS/2 Port
0
PCI foglalatok száma
0
PCI-E foglalatok száma
2
VGA integrált
Nincs
Garancia (hónap)
36
Termék gyártója
GIGABYTE
Cikkszám
302563
