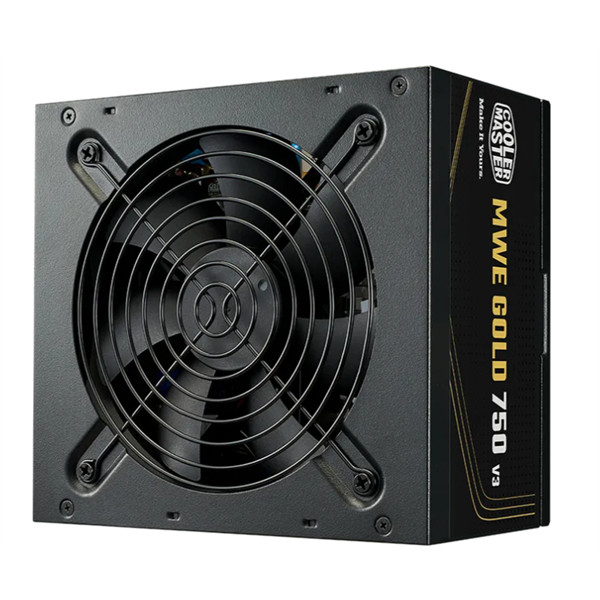

ModelMPE-8506-ACAG-B**, MPE-7506-ACAG-B**, MPE-6502-ACAAG-3B**, MPE-5502-ACAAG-3B**
ATX VersionATX 12V Ver. 3.1
PFCActive PFC
Input Voltage100-240V
Input Current10-6A (850/750W), 10-5A (650W), 8-4A (550W)
Input Frequency50-60Hz
Dimensions (L x W x H)140 x 150 x 86 mm
Fan Size120mm
Fan BearingHDB
Fan Speed2400 RPM (850/750/650W), 1800 RPM (550W)
Efficiency?90% @ Typical Load
80 PLUS Rating80 PLUS Gold
ErP 2014 Lot 3Yes
Operating Temperature0-40°C
Power Good Signal100 - 150 ms
Hold Up Time?16ms at 80% Load
MTBF>100,000 Hours (850/750W), >100,000 Hours @ 25?ambient (650/550W)
ProtectionsUVP / OVP / OPP / OTP / SCP / OCP
RegulatorycTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.)
ATX 24 Pin Connectors1
EPS 8 Pin / 4+4 Pin Connectors2
PCI-e 6+2 Pin Connectors4 (850/750/650W), 2 (550W)
SATA Connectors6
Peripheral 4 Pin Connectors3
12V-2x6 (12+4 Pin) Connectors1 (850/750W)
SeriesMWE Gold Series
ModularNon Modular
Form FactorATX
80 Plus EfficiencyGold
