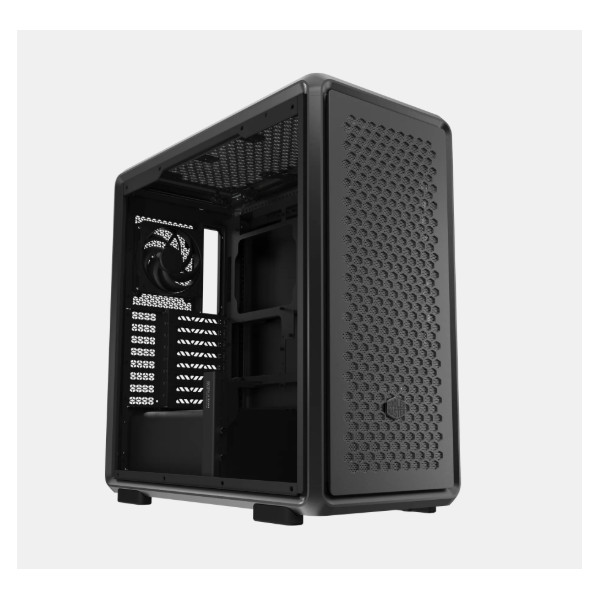

Model NumberBlack: MF600-KGNN-S00, Silver: MF600-SGNN-S00
Color(s)Black / Silver
Materials - ExteriorSGCC Steel, Aluminum
Materials - Side panel (Right / Left)Tempered Glass / Aluminum
Dimensions (L x W x H)531 x 261 x 544mm (Incl. Protrusions), 514 x 244 x 514 mm (Excl. Protrusions)
Volume73.6 L (Liters Incl. Protrusions)
Motherboard SupportMini-ITX, Mini-DTX, Micro-ATX, ATX , E-ATX*, SSI-CEB* ?(*Conditional Support)
Power Supply SupportATX
PCI Expansion Slots8
5.25" Drive Bays0
3.5" Drive Bays0
2.5" / 3.5" Drive Bays (Combo)2
2.5" Drive Bays3
I/O Panel - USB Ports2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C
I/O Panel - Audio In / Out1x 3.5mm Headset Jack (Audio+Mic)
Pre-installed Fans - FrontMobius 140 mm x 3 (non-ARGB) - Available for Black Model Only, SickleFlow ARGB 140 mm x 3 - Available for Silver Model Only
Pre-installed Fans - TopN/A
Pre-installed Fans - RearMobius 120 mm x 1 (non-ARGB) - Available for Black Model Only, SickleFlow ARGB 120 mm x 1 - Available for Silver Model Only
Fan Support - Front3x 120mm, 3x 140mm, 2x 180mm, 2x 200mm
Fan Support - Top3x 120mm, 2x 140mm, 2x 180mm, 1x 200mm
Fan Support - Rear1x 120mm
Fan Support - Side3x 120mm, 3x 140mm
Radiator Support - Front120 / 140 / 240 / 280 / 360 / 420 mm (Limit: 458 mm)
Radiator Support - Top120 / 140 / 240 / 280 / 360 / 420 mm (Up to 420mm if I/O module is moved to the front panel)
Radiator Support - Rear120 mm
Radiator Support - Side240 / 280 / 360 / 420 mm
Dust FiltersTop, Front, Bottom, Right side panel
Clearance - CPU Cooler190 mm
Clearance - PSU235 mm
Clearance - Graphics CardL: 485 mm (incl. power connector), H: 190 mm (incl. power connector)
Included AccessoriesGPU Support Bracket (Available for Black Model Only), GPU Support Bracket / ARGB PWM Hub (Available for Silver Model Only)
Cable Routing - Behind Motherboard Tray43 mm
Warranty2 years
SizeMid Tower
SeriesMasterFrame Series
