| Part No |
90PF05M1-M00RC0 |
| Sales Model Name |
D501SER-5145000370 |
| EAN Code |
4711387895948 |
| UPC Code |
197105895942 |
| WEEE |
5.997 |
| BASE UNIT |
VSPF05M1-BU0010 |
| |
|
| Size |
8.6L |
| Color |
Black |
| Form Factor |
Small form factor |
| Processor |
Intel® Core™ i5-14500 Processor 2.6GHz (24M Cache, up to 5.0GHz, 14 cores)
N/A |
| Chipset |
Intel® B760 Chipset |
| DIMM Memory |
8GB DDR5 U-DIMM |
| Memory Speed |
Memory speed is 5600MHz, but run at 4000~4400MHz. |
| Memory Max. |
64GB |
| Storage |
512GB M.2 2280 NVMe™ PCIe® 4.0 SSD |
| Optical Drive |
Without optical drive |
| LAN |
Intel WGI219V 10/100/1000 Mbps, non-vPro |
| Audio |
High Definition 7.1 Channel Audio |
| Power Supply |
330W power supply (80+ Platinum, peak 660W) |

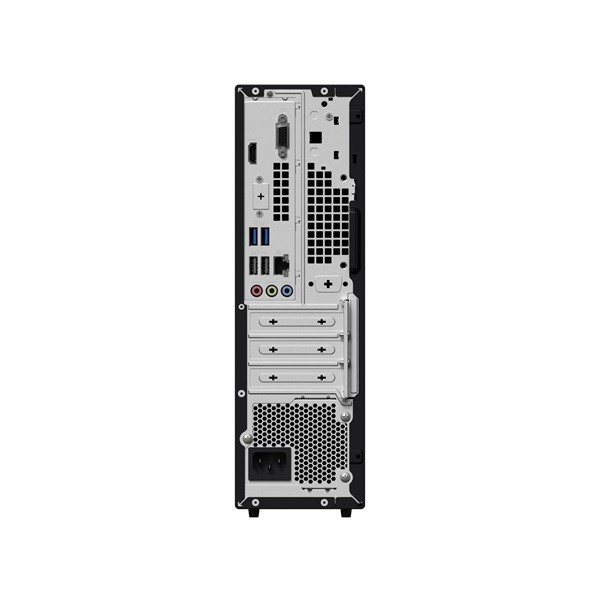

| Rear I/O Port |
1x RJ45 Gigabit Ethernet
1x HDMI 1.4
1x VGA Port
1x 7.1 channel audio (3 ports)
1x Kensington lock
1x Padlock loop
2x USB 2.0 Type-A
2x USB 3.2 Gen 1 Type-A
1x FLEX I/O port (DP1.4 HBR3) |

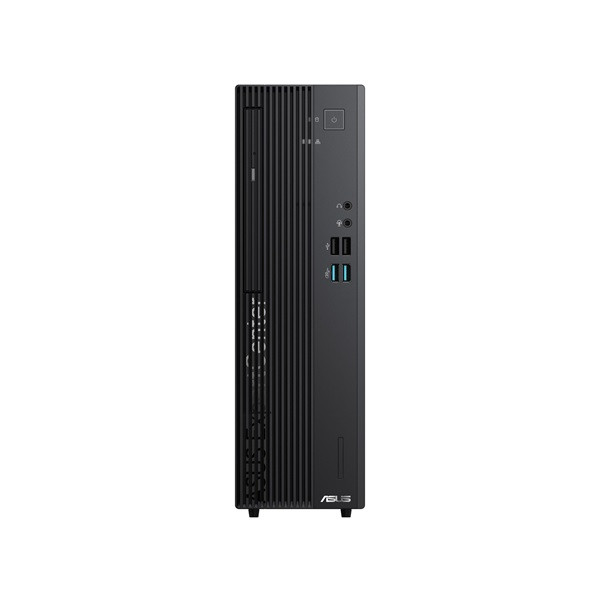

| Front I/O Port |
1x Headphone
1x 3.5 mm combo audio jack (Mic in or Headphone out)
2x USB 2.0 Type-A
2x USB 3.2 Gen 2 Type-A |
| Drive Bay |
2.5" x 1
3.5" x 1 |
| Serial ATA |
4 x SATA 6.0Gb/s ports |
| Expansion Slot(includes used) |
1x PCIe® 4.0 x 16
2x PCIe® 3.0 x 1
1x M.2 2230 connector for storage
1x M.2 2280 connector for storage
1x M.2 connector for WiFi
2x DDR5 U-DIMM slot |
| Keyboard & Mouse |
Wired keyboard (USB)
Wired optical mouse (USB) |
| Dimension (WxDxH) |
09.30 x 29.60 x 30.90 cm (3.66" x 11.65" x 12.17") |
| Weight |
06.00 kg (13.23 lbs) |
| My ASUS features |
System diagnosis
Fan profile
AppDeals |
| Built-in Apps |
MyASUS
ASUS Business Manager |
| Adobe Creative Cloud Hard Bundle |
One-Month Membership of Adobe Creative Cloud All Apps, Individual The redemption duration from September 15, 2021 to November 15, 2022. |
| Security |
HDD User Password Protection and Security
Kensington Security Slot™(7x 3mm)
McAfee LiveSafe™ 30-day trial
Padlock loop
Trusted Platform Module (Firmware TPM) |
| Ecolabels & Compliances |
EPEAT Gold
Energy star 8.0
REACH
RoHS |
| Base Warranty |
3Y Pick up/ return |
| Recommended Warranty Package Part number//Extension and/or upgrade service from base warran |
ACX13-007003PF//3Y OnSite Service(Next Business Day)*upgrade
ACX13-007023PF//2Y Extension; 5Y OnSite Service(Next Business Day)*upgrade
ACX15-012031PF//3Y OnSite Service(Next Business Day); 3Y HDD Retention*upgrade
*If you would like to know the details, please contact your sales teams. |
