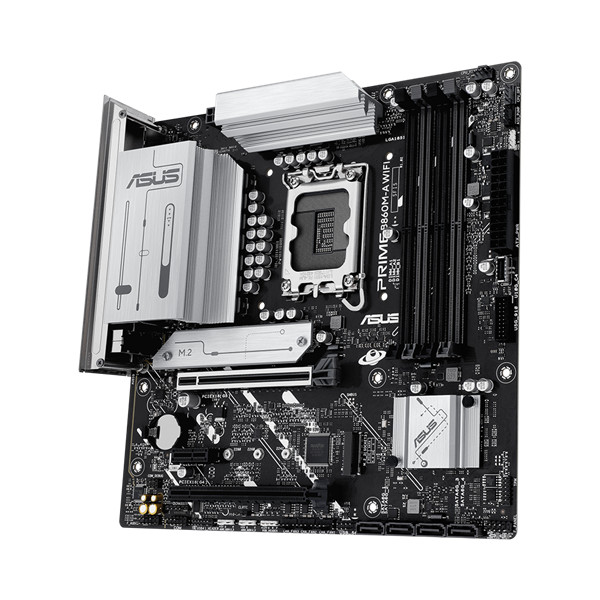

ASUS Alaplap S1851 PRIME B860M-A WIFI INTEL B860, mATX
ASUS Alaplap S1851 PRIME B860M-A WIFI INTEL B860, mATX
havi nettó 45 270 Ft-tól *
havi nettó 41 990 Ft-tól *

ASUS Alaplap S1851 PRIME B860M-A WIFI INTEL B860, mATX

ASUS Alaplap S1851 PRIME B860M-A WIFI INTEL B860, mATX
ASUS Alaplap S1851 PRIME B860M-A WIFI INTEL B860, mATX
Bővebben
Raktáron
7
havi nettó 45 270 Ft-tól *
havi nettó 41 990 Ft-tól *
Kezdete: 2026.05.16   A készlet erejéig
Kedvezmény: 7
Megtakarítás 3 280 Ft
Részletek
Model
PRIME B860M-A WIFI

News & Updates

Please visit our GLOBAL website to check anddownload the latest updates.
CPU
Support Intel® Core™ Ultra Processors (Series 2) , LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
*Refer to https://www.asus.com/support/download-center/ for CPU support list.
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B860 Chipset
Memory
4 x DIMM slots, max. 256GB, DDR5
Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
2 x DisplayPort**
1 x HDMI™ port***
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output**
 * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** Supports max. 4K@120Hz as specified in DisplayPort 1.4.
***** VGA resolution support depends on processors' or graphic cards' resolution.
******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots
Intel® Core™ Ultra Processors(series 2)
1 x PCIe 5.0 x16 slot
Intel® B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode)
Intel®B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later
** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
1 x USB 10Gbps port (1 x Type-A )
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)**
Front USB (Total 5 ports)
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
*USB Type-C® power delivery output: max. 5V/3A
**USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A )
2 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additionalUSB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Aura RGB header
- Addressable Gen2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS DriverHub
ASUS GlideX
ASUS CPU-Z
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
BIOS
256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber package
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide
Operating System
Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)
Form Factor
micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Adatok
Gyártó
ASUS
Gyártói cikkszám
PRIME B860M-A WIFI
Garancia
36 hónap
EAN
4711387806289
USB 2.0
6
HDMI
Van
Wireless
Van
Display Port
Van
D-Sub
Nincs
Thunderbolt
Nincs
DVI
Nincs
Memória típus
DDR5
USB 3.1
7
USB 3.0
0
Kivitel
Dobozos
Memória órajel
5200
Soros port
Nincs
EAN
4711387806289
Chipset gyártó
Intel
Raid
Igen
Foglalat típusa
S1851
SATA III
4
Párhuzamos port
Nincs
Quad Channel
Nincs
M.2 foglalat
Van
Audio
7.1 HD
Grafikus foglalat
2 x PCI-Ex16x
Form Factor
mATX
LAN1
100/1000/2500 Mb/s
Max memória
256
Memória foglalatok száma
4
PS/2 Port
0
PCI foglalatok száma
0
PCI-E foglalatok száma
1
VGA integrált
Nincs
Garancia (hónap)
36
Termék gyártója
ASUS PCC
Cikkszám
385859
